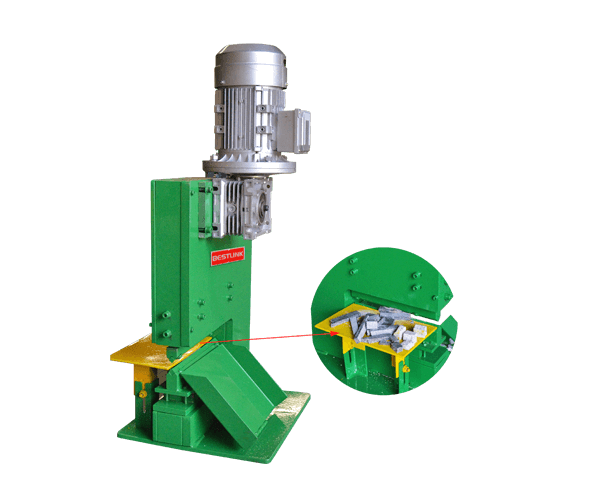

Станок для производства мозайки
The mosaic chopping machines are realized for cutting various sizes of stones: tesserae, cubes & all the shapes desired. The structure of both the machines is realized in steel, while fly-wheel and slides are produced in cast iron. are equipped with two blades in hardened steel: the lower part is secured to the structure and doesn't move; the upper one is driven by the fly-wheel and falls in a perpendicular on the lower.
Номер модели | MS-02 (manual) | MS-02S (manual+stand) | MS-02E (electric) | MS-03 (manual) | MS-12(hydraulic) |
Усилие раскола | 2 tons | 2 tons | 2 tons | 2tons | 12 tons |
Максимальная ширина | 240 mm | 240 mm | 240 mm | 120 mm | 240 mm |
Максимальная высота | 65 mm | 65 mm | 65 mm | 30 mm | 100 mm(40mm for granite) |
Мощность | / | / | / | / | 3.0 kw |
Объем бака | / | / | / | / | 30 L |
Габариты | 500*400*700 mm | 1500*700*500mm | 900*400*400mm | 630*430*600CM | 500*600*1600 mm |
Вес | 70 kg | 80kg | 65 kg | 70 kg | 210 kg |
*Note:MS-02S is the one with stand .
Станок для производства мозайки
The mosaic chopping machines are realized for cutting various sizes of stones: tesserae, cubes & all the shapes desired. The structure of both the machines is realized in steel, while fly-wheel and slides are produced in cast iron. are equipped with two blades in hardened steel: the lower part is secured to the structure and doesn't move; the upper one is driven by the fly-wheel and falls in a perpendicular on the lower.
Номер модели | MS-02 (manual) | MS-02S (manual+stand) | MS-02E (electric) | MS-03 (manual) | MS-12(hydraulic) |
Усилие раскола | 2 tons | 2 tons | 2 tons | 2tons | 12 tons |
Максимальная ширина | 240 mm | 240 mm | 240 mm | 120 mm | 240 mm |
Максимальная высота | 65 mm | 65 mm | 65 mm | 30 mm | 100 mm(40mm for granite) |
Мощность | / | / | / | / | 3.0 kw |
Объем бака | / | / | / | / | 30 L |
Габариты | 500*400*700 mm | 1500*700*500mm | 900*400*400mm | 630*430*600CM | 500*600*1600 mm |
Вес | 70 kg | 80kg | 65 kg | 70 kg | 210 kg |
*Note:MS-02S is the one with stand .
